HPA-1000 Automatic Touch Screen Grinding-Polishing Machine 0.75Kw

HPA-1000 Automatic Touch Screen Grinding-Polishing Machine 0.75Kw
HPA-1000 Automatic Touch Screen Grinding-Polishing Machine 0.75Kw HPA-1000 Automatic Touch Screen Grinding-Polishing Machine 0.75Kw

Gambar besar :  HPA-1000 Automatic Touch Screen Grinding-Polishing Machine 0.75Kw

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HPA-1000 & HPA-2000
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HPA-1000 Automatic Touch Screen Grinding-Polishing Machine 0.75Kw

Deskripsi
Rotate speed: 50-1000 RPM reverse rotation can be switched Kecepatan pelat sampel: Rotasi terbalik 30-200 rpm dapat diaktifkan
Working air source pressure: More than 0.6MPa Daya motor: 0,75 kW
Catu daya: AC220V, 50/60Hz, 2KW
Menyoroti:

automatic grinding polishing machine

,

touch screen polishing machine

,

HPA series grinding machine with warranty

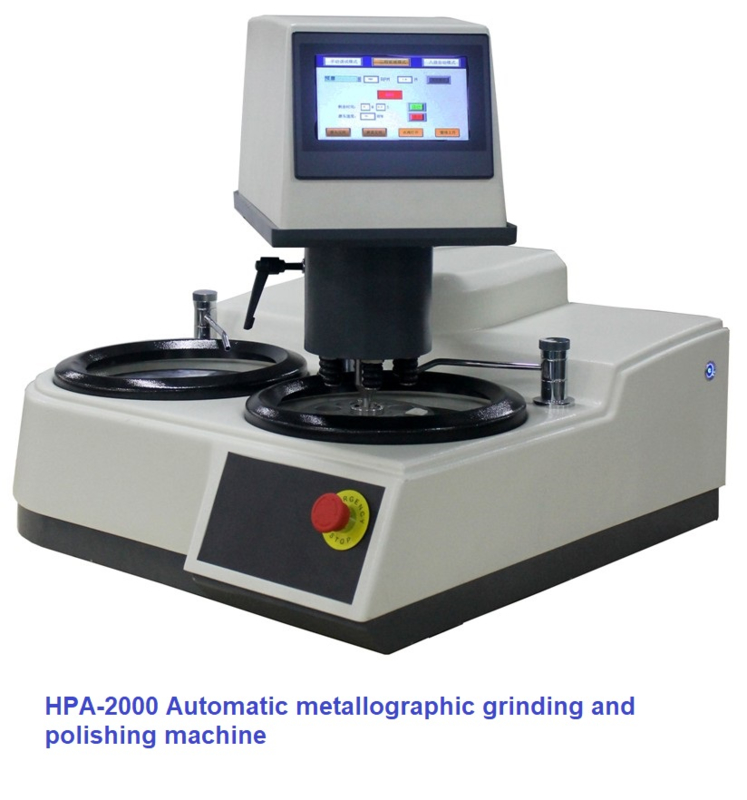

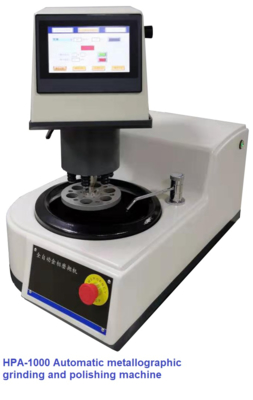

HPA-1000 & HPA-2000 Automatic Touch screen Grinding-Polishing Machine
Key Specifications
Rotate speed 50-1000 RPM reverse rotation can be switched
Sample plate speed 30-200 RPM reverse rotation can be switched
Working air source pressure More than 0.6MPa
Motor power 0.75 Kw
Power supply AC220V, 50/60Hz, 2KW
Product Features
  • 6 samples, pressurized independently
  • PLC independently controls the grinding disc and sample disc with automatic parameter saving
  • User-friendly touch screen interface for easy parameter setting and operation
  • Infinitely variable rotation of grinding disc and sample disc with switchable rotation direction
  • PLC controls water and abrasive drip on/off
  • Three working modes: Automatic, Manual, and Setting
  • Easily replaceable magnetic anti-sticking disk for versatile sample processing
  • Electromagnetic automatic locking brake for convenience
  • U disk storage for 300 processes with import/export capability
  • English interface
  • High precision, smooth operation, low noise
  • Optional drip dispenser and mobile remote control operation module
Technical Specifications
Item HPA-1000 HPA-2000
Station Single disc Double disc
Working disc diameter Standard φ254mm (optional φ230mm, φ203mm) with magnetic switchboard system
Rotate speed 50-1000r/min with forward/backward rotation switching
Grinding head speed 30-200r/min
Manual mode 30 sets of parameters, each set can be set and called separately
Automatic mode 30 sets of process (each containing 10 steps of process parameters)
Sample holder 30mm can be 6 holes (various options available)
Grinding head locking mode Electromagnetic automatic lock
Working air source pressure range More than 0.6MPa
Motor power 0.75Kw
Input voltage AC220V, 50/60Hz, 2KW
Dimension 700 x 730 x 350
Weight 74kg
Standard Accessories
Name Quantity Name Quantity
Input-water pipe 8mm 1 Output-water pipe 25mm 1
4-point filter (60 mesh, double layer) 4 Rubber pad with strainer 1
Hose hoops 1 Triangle valve 1
Fast twist joint 1 Teflon tape 1
Waterproof ring 2 Hook 1
Data cable 1 Power cable 1
Touch pen 1 Machine manual & certification 2
Diamond polishing liquid, 6micron, 200ml 1 Anti-sticky disc (250mm) 2
One side sticky grinding paper (250 mm) 180#, 320#, 600#, 1000# 2 each Polished cloth (with glue, 250mm) Flocking (brown), canvas 1 each
Optional Accessories
  • Metallographic grinding paper (GSC250A): 100 pieces/package, various grit sizes available (P80# to 2000#), Φ250mm, waterproof and one side sticky
  • Anti-sticky disc (MAGNOMET): 5 pieces/box, Φ254mm, special anti-sticky layer for easy replacement and reuse
  • Polishing cloth (FT250A): 10 pieces/package, various types available, Φ250mm, one side sticky
  • Diamond grinding and polishing liquid (DSU): 500ml/bottle, various micron sizes available for different materials
