HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine
HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

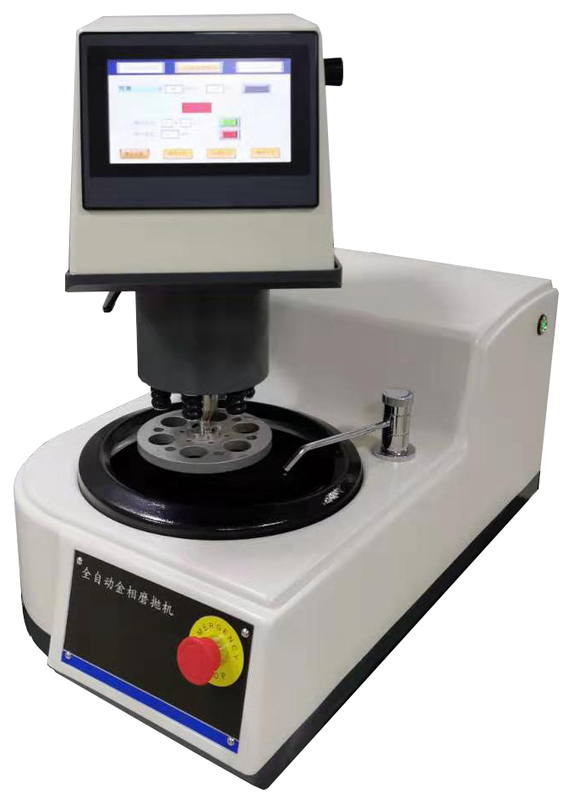

Gambar besar :  HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HAP-1000XP/HAP-2000XP
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Kemasan rincian: Kotak Pengepakan Karton
Delivery Time: 7-10 working days after receipt of your payment
Payment Terms: T/T,Paypal
Menyediakan kemampuan: 10set/bulan
Kontak

HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine

Deskripsi
Putar Kecepatan: Rotasi terbalik 50-1000 rpm dapat diaktifkan Sample plate speed: 30-200 RPM reverse rotation can be switched
Working air source pressure: More than 0.6MPa Daya motor: 0,75 kW
Catu daya: AC220V, 50/60Hz, 2KW
Menyoroti:

automatic metallographic grinding machine

,

multi-point pressure polishing machine

,

central pressure metallographic polisher

HAP-1000XP/HAP-2000XP Fully Automatic Multi-point Pressure & Central Pressure Metallographic Grinding and Polishing Machine
Key Specifications
Rotate speed 50-1000 RPM reverse rotation can be switched
Sample plate speed 30-200 RPM reverse rotation can be switched
Working air source pressure More than 0.6MPa
Motor power 0.75 Kw
Power supply AC220V, 50/60Hz, 2KW
Product Overview

The HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding and Polishing Machine features:

  • Single sample independent loading
  • Center loading of sample tray
  • Capacity for six samples simultaneously
  • Optional four-channel automatic drip device
Key Features
  • Supports both single and double grinding discs
  • Electromagnetic automatic locking for grinding head
  • Magnetic anti-stick plate for easy replacement
  • Touch screen interface for intuitive operation
  • Bilingual interface (Chinese/English)
  • Three working modes: Automatic, Single Process, and Manual
  • U disk storage for 300 processes with import/export capability
Technical Parameters
Item HAP-1000XP HAP-2000XP
Station Single disc Double disc
Working disc diameter Standard with φ254mm (optional φ230mm/φ203mm, customized φ304mm) with magnetic conversion disk system
Sample holder 30mm can be 6 holes (optional 20mm 6 holes, 40mm, 50mm 3 holes, others can be customized)
Overall dimensions 760 x 470 x 700mm 760 x 730 x 700mm
Weight 63kg 74kg
Main Attachments
Item Quantity (Single disk/double disk)
Central loading mechanism 1 set
Magnetic disk (254mm) 1/2 pcs
Diamond suspension polishing fluid (1 micron, 6 micron 200 ml) Each 1 bottle
Anti-sticking plate 2 pcs
Optional Accessories
  • Four channel automatic dripper
  • Mobile terminal remote control operation module
  • Air pump
  • Huawei FLAT-panel M6 10.8in Kirin 980 4GB+64GB WiFi
Optional Consumables
Product Description
MAGNOMET
  • Anti-sticky disc 5 pieces/box
  • Diameter: Φ254mm
  • Special anti-sticky layer coating
  • Reusable
GSC250A
  • 100 pieces/package
  • Material: black carborundum
  • Sand sizes available from P80# to 2000#
Product Images
HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine 0 HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine 1 HAP-1000XP/HAP-2000XP Automatic Metallographic Grinding Polishing Machine 2
