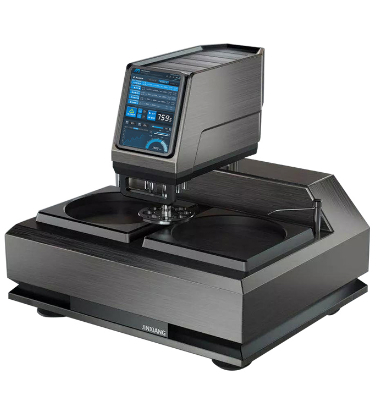

HPA-2ZSGZ Automatic Grinding Polishing Machine 2500W 50-1500 RPM

HPA-2ZSGZ Automatic Grinding Polishing Machine 2500W 50-1500 RPM
HPA-2ZSGZ Automatic Grinding Polishing Machine 2500W 50-1500 RPM

Gambar besar :  HPA-2ZSGZ Automatic Grinding Polishing Machine 2500W 50-1500 RPM

Detail produk:
Place of Origin: China
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HPA-2ZSGZ
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Packaging Details: Carton packing box
Delivery Time: 7-10 working days after receipt of your payment
Syarat-syarat pembayaran: T/t, paypal
Supply Ability: 10sets/Month
Kontak

HPA-2ZSGZ Automatic Grinding Polishing Machine 2500W 50-1500 RPM

Deskripsi
Jumlah daya masukan: 2500W Tekanan titik tunggal: 0-50N
Kecepatan Kepala Gerinda: 10-120 RPM (Kontrol Kecepatan Cerdas) Kecepatan pemolesan: 50-1500 rpm (Kontrol Kecepatan Cerdas)
Parameter penggilingan: Simpan 100 skema penggilingan dan pemolesan Waktu Penggilingan: 0-9999 detik x2
Akurasi pemolesan: Lompatannya kurang dari 0,05mm
Menyoroti:

automatic sample grinding machine

,

high precision polishing equipment

,

intelligent non-destructive testing machine

HPA-2ZSGZ Intelligent Automatic High Precision Sample Grinding and Polishing Machine
Product Specifications
Attribute Value
Total input power 2500W
Single point pressure 0-50N
Grinding head speed 10-120 rpm (intelligent speed control)
Polishing speed 50-1500 rpm (intelligent speed control)
Grinding parameters Store 100 grinding and polishing schemes
Grinding time 0-9999 seconds X2
Polishing accuracy The jump is less than 0.05mm
Product Overview

The HPA-2ZSGZ is an intelligent automatic grinding and polishing machine, representing the new generation of high precision sample preparation and pre-treatment equipment manufactured according to international standards and advanced technology.

Key Features
  • Advanced Control System: Industrial PLC intelligent control with 10" HIGH-DEFINITION touch screen, offering three operation modes: manual, intelligent, and semi-intelligent.
  • Premium Construction: Elegant design with SUS 304 stainless steel casing through brushed electroplating process.
  • Dual-Disk Configuration: Large-diameter φ250mm (10") dual-disk, dual-station, dual-control grinding and polishing disk (φ230mm and φ300mm options available).
  • Precision Motors: 100W stepper motor for grinding head and 1000W servo motor for polishing disc with infinitely variable speed (50-1500 rpm).
  • Automated Operation: Program-controlled automation with 100 customizable grinding programs.
  • Cooling System: Prevents sample overheating with optional online sewage filtration for environmental compliance.
Technical Specifications
Parameter Specification
Main Host Desktop dual control
Hull Material SUS 304 stainless steel
Polishing Disc Material Aluminum alloy
Number of Polishing Discs Dual disk two workstations (customizable)
Working Power Supply 220V 50HZ
Number of Clamps Φ30mm*8 (special sizes available)
Pressure Method Pneumatic single point
Operation Modes Intelligent/Manual/Semi-automatic
Control System PLC with 10" HD touch screen
Abrasive Addition Double channel intermittent automatic spraying
Head Motor 100W stepper motor
Grinding Mill Motor 1000W * 2 servo motors
Maximum Specimen Size Circular: Φ120mm; Square: 120mm*50mm
Dimensions 830*800*800mm (L*W*H)
Weight Approx. 150kg (180kg with packaging)
Standard Configuration
Item No. Name Specifications Qty Remarks
1 Product Name MP-2ZS 1 1 set
2 Aluminum alloy grinding disc Ø250mm 1 Mounted on machine
3 Aluminum alloy polishing disc Ø250mm 1 Mounted on machine
4 Automatic feeding system Dual station 1 External
5 Sample holder Ø30mm*8 holes 1 Mounted on machine
6 Dust guard 850×900×900mm 1 Mounted on machine
7 Water barrier Ø300mm 2 Mounted on machine
8-11 Back adhesive metallographic sandpaper Ø250mm (320#, 600#, 1500#, 3000#) 10 each Per type
12 Clean brush 5mm*19mm 1 Individual
13 Polish velvet cloth Ø250mm 2 Velvet
14 Alumina polishing powder W0.5 1 100g
15 Cooling water pipe 360° rotating 2 Mounted on machine
16-23 Accessories Various As listed See full specifications
