TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials

TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials
TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials

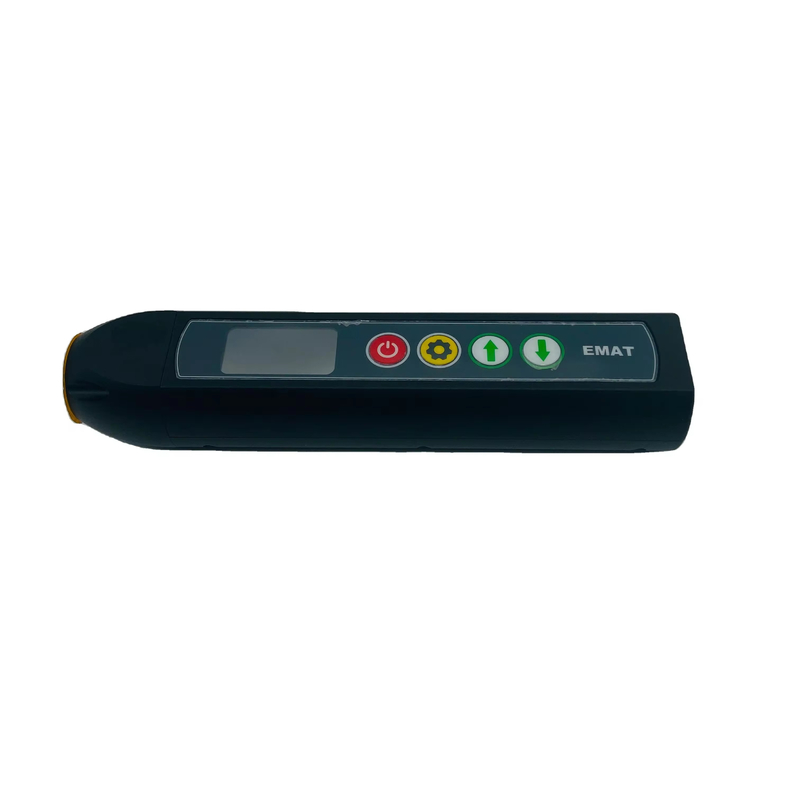

Gambar besar :  TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: TG-14D
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Supply Ability: 10sets/Month
Kontak

TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials

Deskripsi
Effective range: 1.0～320mm Sound velocity range: 400～9999 m/s
Min Radius of Curvature: 8mm Jarak Angkat: 4mm ((Aluminium), 3mm ((Baja Karbon), 2mm ((Baja tahan karat)
Antarmuka komunikasi: RS-485 atau USB2.0 Akurasi pengukuran: ± 0,01mm
Gain: Automatic 0～96dB, pace 1dB
Menyoroti:

EMAT ultrasonic thickness gauge

,

magnetic materials thickness tester

,

electromagnetic NDT equipment

TG-14D EMAT Metal or Magnetic Materials Electromagnetic Ultrasonic Thickness Gauge
Product Attributes
Attribute Value
Effective range 1.0～320mm
Sound velocity range 400～9999 m/s
Min Radius of Curvature 8mm
Lifting distance 4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)
Communication Interface RS-485 or USB2.0
Measurement accuracy ±0.01mm
Gain Automatic 0～96dB, pace 1dB
Product Description

TG-14D EMAT Metal or Magnetic Materials Electromagnetic Ultrasonic Thickness Gauge is a newly developed thickness gauge featuring ultra-small size and non-contact measurement capability that does not require acoustic coupling agents. It can measure the thickness of metal or magnetic materials.

Product Features
  • Mini size and easy to carry
  • The requirements for the workpiece surface are not high, and there is no need to polish the rough surface, which can realize non-contact measurement
  • Insensitive to the coating and can realize the thickness measurement of coated workpiece
  • No acoustic coupling agent is required, making it suitable for thickness measurement of high-temperature workpieces
Basic Parameters
Sampling rate 80MSPS
Bandwidth 2.5MHz～6MHz
Launch ± 600V_400Hz_125ns
Gain Automatic 0～96dB, pace 1dB
Measurement accuracy ±0.01mm
Sound velocity range 400～9999 m/s
Effective range 1.0～320mm
Average level L, M, H three-level adjustable
Lifting distance 4mm(Aluminum), 3mm(Carbon steel), 2mm(Stainless steel)
Min Radius of Curvature 8mm
Measurement type Aluminum, copper, iron, carbon steel, cast steel, alloy steel, stainless steel, titanium alloy and other metal materials
Measurement mode Single echo(I-E), Dual echo(E-E)
Auxiliary functions Auto freeze, Auto gain, Auto sleep, Metric and British switching, Sound velocity saving, Backlight adjustment
Revised function Sound velocity calibration, high temperature compensation
Communication Interface RS-485 or USB2.0
Charger 5V2A, Standard Type-C interface
Display screen 1.47 inch 320×172 IPS_LCD
Dimension 178.4mm×42mm×32mm
Battery life 3.7V 3400mAh Lithium battery, 6 hours of battery life
Bare weight A Metal shell: 358g B Injection molded shell: 255g C Injection molded + quick release: 289g
Standard Configurations
Serial number Name Quantity Remark
1 Host 1
2 Normal temperature probe 1 4MHz,Φ42mm*32mm
3 Charging data cable 1
4 Charging plug 1
5 Manual & calibration certificate 1
6 Iron based test block 1
7 Aluminum based test block 1
8 Packing box 1
Optional Configuration

(You can choose to order according to your needs, which is not included in the standard configuration)

Serial number Name Quantity Remark
1 High temperature probe 1 4MHz,Φ33mm*40mm
2 Small diameter normal temperature probe 1 4MHz,Φ13mm*36mm
3 Large diameter normal temperature probe 1 4MHz,Φ40mm*60mm
TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials 0
TG-14D EMAT Ultrasonic Thickness Gauge for Metal Magnetic Materials 1
