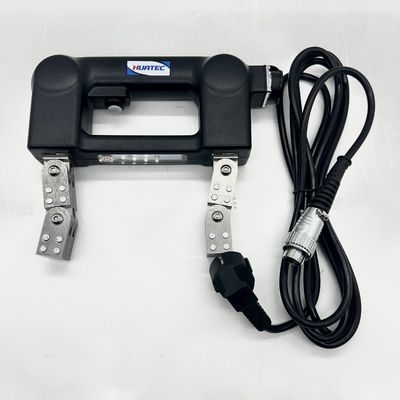

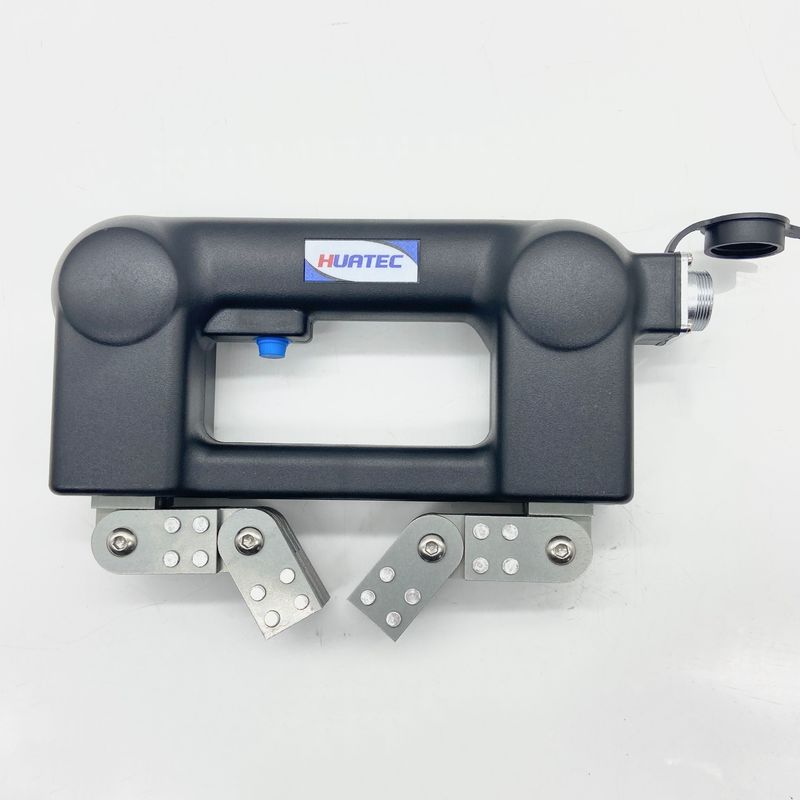

HCDX-Y2 Portable AC Magnetic Yoke for Welding Inspection

The HCDX-Y2 is an AC electromagnetic yoke, ergonomically designed to improve productivity. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the HCDX-Y2 is designed for the rugged demands of field inspection. Featuring replaceable spare parts body design, isolated trigger switch, power cord, mainboard, UV & white light lamp and legs all can be replaced by user, the HCDX-Y2 is easily serviceable not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part. All-in-one Kits are also available, including Red and Gray magnetic powders, a yellow paint marker, and cleaning cloth, for a full inspection kit in one convenient carrying case.

• Sealed, durable construction
• Chemical and abrasion resistant
• AC operation for surface and sub-surface inspection
• Exceeds ASTM lifting specifications
• The DC magnetizing power supply (DC battery pack) can be used to realize the DC magnetization function
• When the lifting force is not enough, the power is automatically cut off to ensure the sensitivity of flaw detection
• The power display function can display the current battery power, and has the function of sound and light alarm
• Built in microcomputer chip to stabilize output voltage and ensure detection sensitivity
• Adjustable magnetization
• Special working waist bag can carry battery pack, magnetic suspension, contrast agent, yoke probe, etc.

• HCDX-Y2 Yoke
• Power cord
• Calibration certificate
• Warranty card
• Carrying case
