HEF-301 High Sensitivity Eddy Current Tester with Impedance Display

HEF-301 High Sensitivity Eddy Current Tester with Impedance Display
HEF-301 High Sensitivity Eddy Current Tester with Impedance Display HEF-301 High Sensitivity Eddy Current Tester with Impedance Display

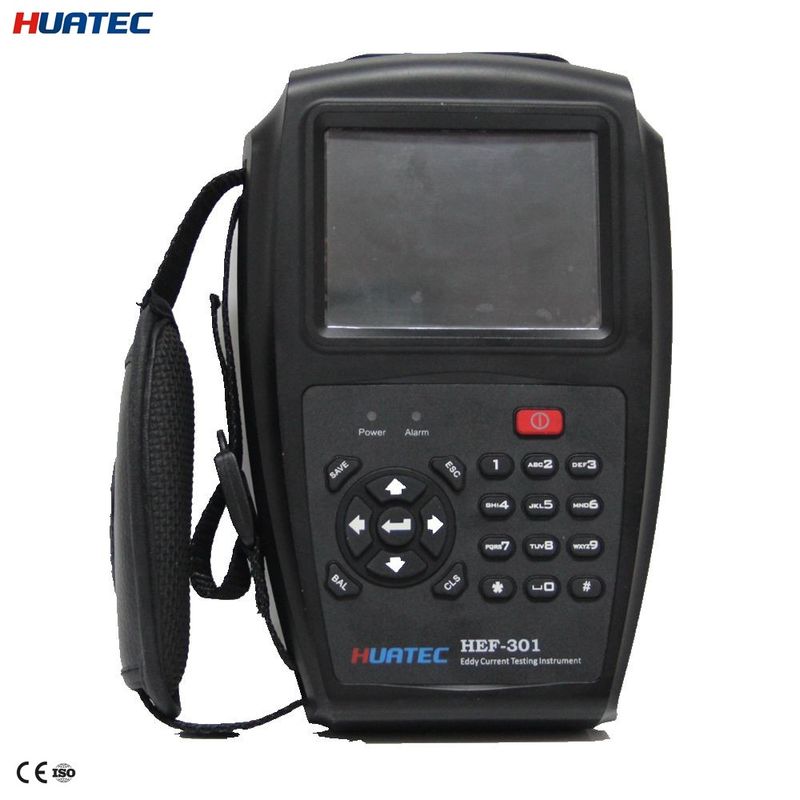

Gambar besar :  HEF-301 High Sensitivity Eddy Current Tester with Impedance Display

Detail produk:
Tempat asal: Cina
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HEF-301
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 PC
Harga: USD6325/set - USD7150/set
Kemasan rincian: Kotak kemasan karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/T, PayPal
Menyediakan kemampuan: 10 set/bulan
Kontak

HEF-301 High Sensitivity Eddy Current Tester with Impedance Display

Deskripsi
Rentang frekuensi: 64Hz~5MHz (dapat disesuaikan) Dapatkan jangkauan: 0 ~ 90 dB, diatur dalam langkah 0,5 dB
Rotasi fase: 0~360 , dapat disesuaikan pada langkah 1
Menyoroti:

high sensitivity eddy current tester

,

eddy current tester impedance display

,

non destructive testing equipment

HEF-301 Impedance Display Mode One-finger Operation High Sensitivity Eddy Current Testers
Key Features

The HEF-301 combines ergonomic design with advanced digital technology to deliver superior performance in flaw detection:

  • One-finger operation designed for ease of use based on ergonomic research
  • Advanced digital electronic and microcomputer technology for reliable performance
  • Impedance display mode with micro power capability
  • High sensitivity for detecting various material discontinuities including cracks, puckers, scars, pits, and more
  • Broad frequency range (64Hz to 5MHz) suitable for multiple metal materials
  • Digital parameter storage for different applications
  • Compliant with JB/T 10658 and EN1711 standards
Technical Specifications
Attribute Value
Frequency range 64 Hz~5 MHz (adjustable)
Gain range 0~90 dB, adjustable in step of 0.5 dB
Phase rotation 0~360°, adjustable in step of 1°
Boundary dimension 183x120x44 (mm)
Battery In-built lithium polymer, 5.5 hours continuous operation
Additional Features
  • Fast digital/analogue electronic balance
  • Impedance plan display window
  • Delay disappear of signal track
  • Menu type man-machine dialog
  • USB and network communication ports
  • Digital filter
  • Optional probe types (absolute, differential, self-comparing)
  • Adjustable alarm area
Standard Configuration
  • HEF-301 eddy current flaw detector
  • Pen probe
  • Test block
  • Power adapter
  • Instrument box
  • Transmission Line
  • Documentation
  • Operational Guidelines
  • Certificate of Product Qualification
  • Quality Assurance Certificate
  • Quality Feedback Form
  • Packing list
  • Communication software
Product Images
HEF-301 High Sensitivity Eddy Current Tester with Impedance Display 0 HEF-301 High Sensitivity Eddy Current Tester with Impedance Display 1 HEF-301 High Sensitivity Eddy Current Tester with Impedance Display 2
