HDL-380 Film Dryer with 8 Air Flow Channels for NDT

HDL-380 Film Dryer with 8 Air Flow Channels for NDT
HDL-380 Film Dryer with 8 Air Flow Channels for NDT HDL-380 Film Dryer with 8 Air Flow Channels for NDT

Gambar besar :  HDL-380 Film Dryer with 8 Air Flow Channels for NDT

Detail produk:
Tempat asal: CINA
Nama merek: HUATEC
Sertifikasi: CE
Nomor model: HDL-380
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: USD2185/set - USD2470/set
Kemasan rincian: Kotak Pengepakan Karton
Waktu pengiriman: 7-10 hari kerja setelah menerima pembayaran Anda
Syarat-syarat pembayaran: T/t, paypal
Menyediakan kemampuan: 10set/bulan

HDL-380 Film Dryer with 8 Air Flow Channels for NDT

Deskripsi
Kecepatan pengembangan film: 40-240 detik dapat disesuaikan Lebar pakan lembar: 360mm
Kecepatan bergerak: 950mm/mnt (waktu berjalan: 40 detik) Jumlah tablet kering: Film 80x360mm (4 "x14") 600 lembar per jam (kecepatan film kering 40 -an)
Menyoroti:

HDL-380 film dryer with 8 channels

,

air flow film dryer for NDT

,

non-destructive testing film dryer

HDL-380 8 Air Flow Channels Film Dryer
Product Specifications
Attribute Value
Film development speed 40-240s adjustable
Sheet feeding width 360mm
Moving speed 950mm/min (running time: 40 seconds)
Dry tablet quantity 80X360mm (4"X14") film 600 sheets per hour (dry film speed 40s)
Product Description

The HDL-380 8 Air Flow Channels Film Dryer is designed for efficient drying of photographic films with advanced air flow technology.

Working Principle

Based on the principle of the baking sheet in fully automatic washing machines, the hand-washed film is placed on the sheet feed plate. When the film sensor detects the film, the machine's transmission mechanism begins operation, automatically feeding the film into the dryer. The PTC drying component blows hot air directly onto the film, which is then dried by the drying suction shaft. After water absorption and hot air drying, the film is taken directly from the chip outlet. The entire process takes just 45 seconds, allowing staff to obtain a dry film immediately for evaluation.

Technical Parameters
Parameter Specification
Drying process → Water washing → Drying →
Film release method Front/back film release
Film development speed 40-240s adjustable
Sheet feeding width 360mm
Moving speed 950mm/min (running time: 40 seconds)
Dry tablet quantity 80X360mm (4"X14") film 600 sheets per hour (dry film speed 40s)
Power supply 200-240V, 50/60Hz 5A
Water consumption 2 l/min during film operation
Dimensions 560mm × 480mm × 545mm (L × W × H)
Key Features
  • Chip induction function
  • 8 air flow channels with improved air duct for higher drying efficiency
  • Roller shaft: DuPont foamed uranium ensures no hardening within 5 years
  • Shell: Engineering PVC plastic
  • Heating element: PTC heating element
  • Temperature control: Constant temperature control with solid-state relay
  • Optional parts: Water washing circulating device for sites with no tap water, poor water quality, or frequent water stoppage

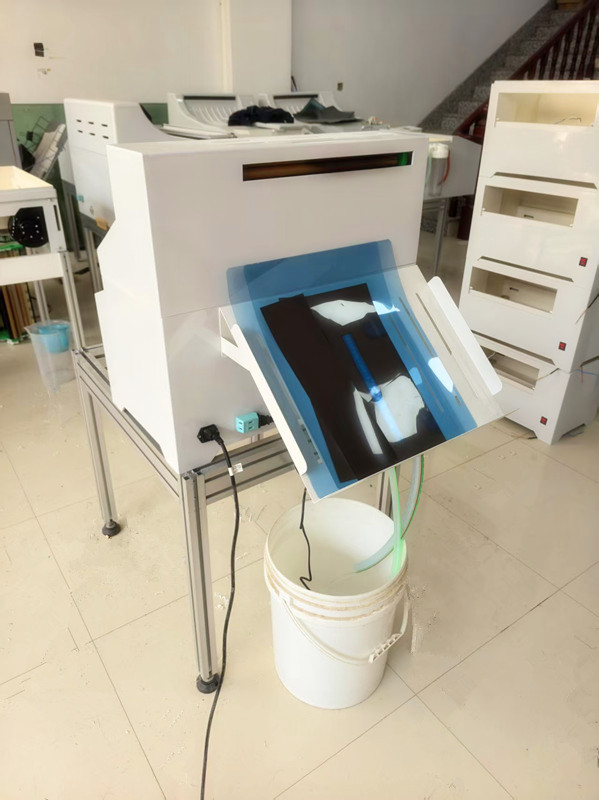

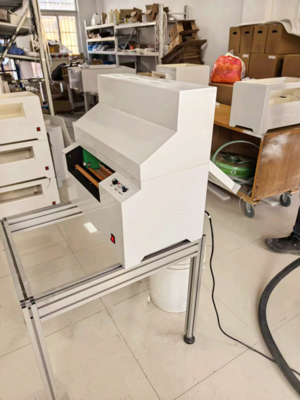

Product Images
